  3. Vehicle Car 7 Inch HD 1080P Split Screen 4 Channel HD Quad View Waterproof Camera System
Category:
  1. General Details

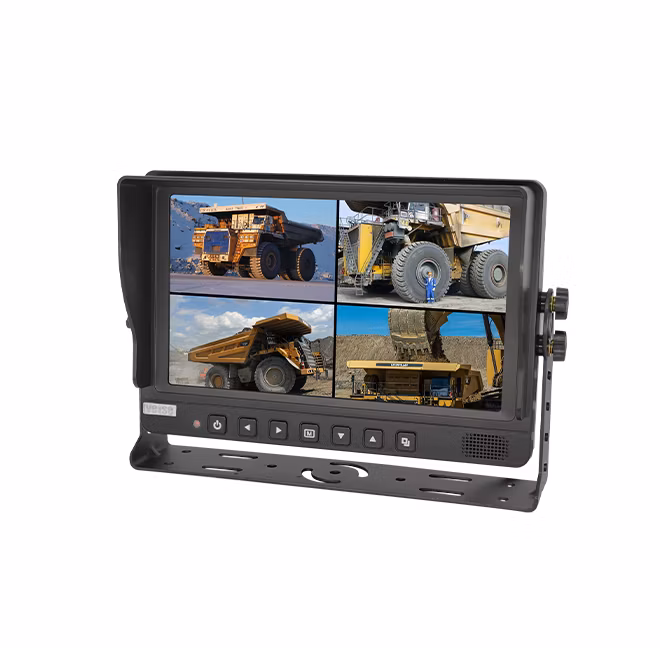

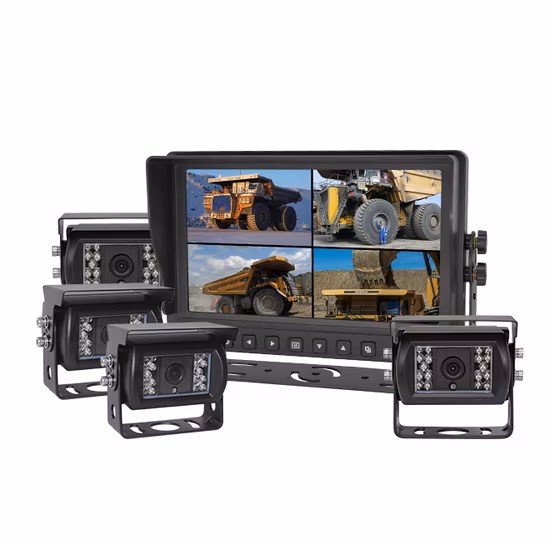

    HD Security System with 7-inch HD Quad-view Vehicle Monitor support 4CH x 1080P or 720P cameras.

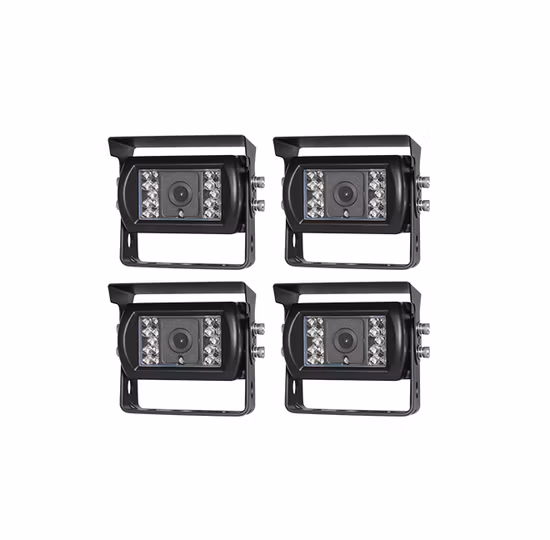

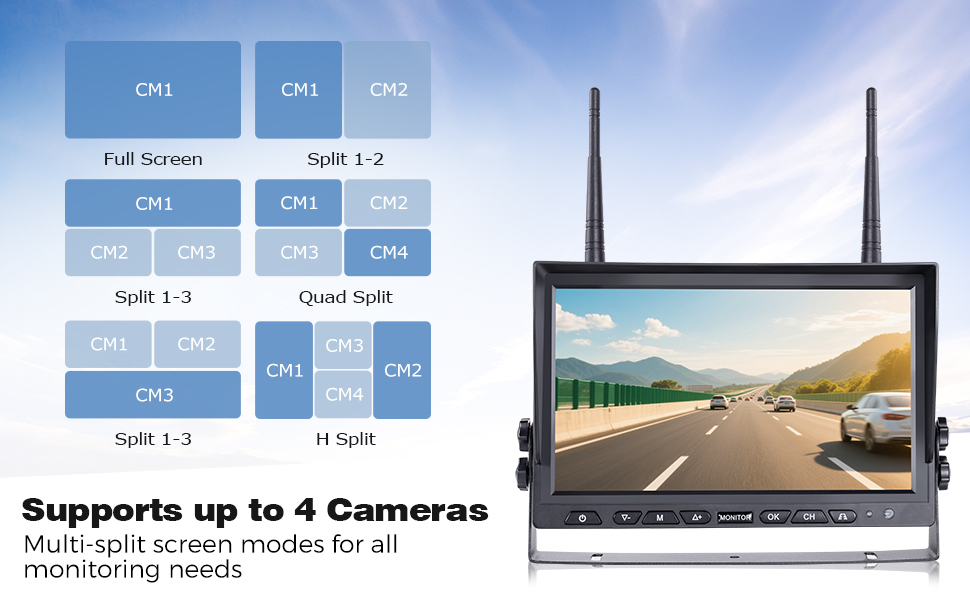

    Support 4 camera inputs, and display 1 to 4 cameras simultaneously
    This monitor has audio functionality
    Suitable for 4WDs, Motorhomes, Horse Trailers, Trucks, buses, and heavy machinery etc.

  2. Techical Info
    Standard NTSC
    Sensor CMOS
    Video Input 4
    Audio Input 4
    Field of view 135°/80°
    Definition 1080P or 720P
    Minimum illumination 0.1lux
    Signal-to-noise ratio ≥45dB
    Temperature -40~85
    Voltage range 9~16V
    Output signal format AHD
    Dimension 75*47*62mm

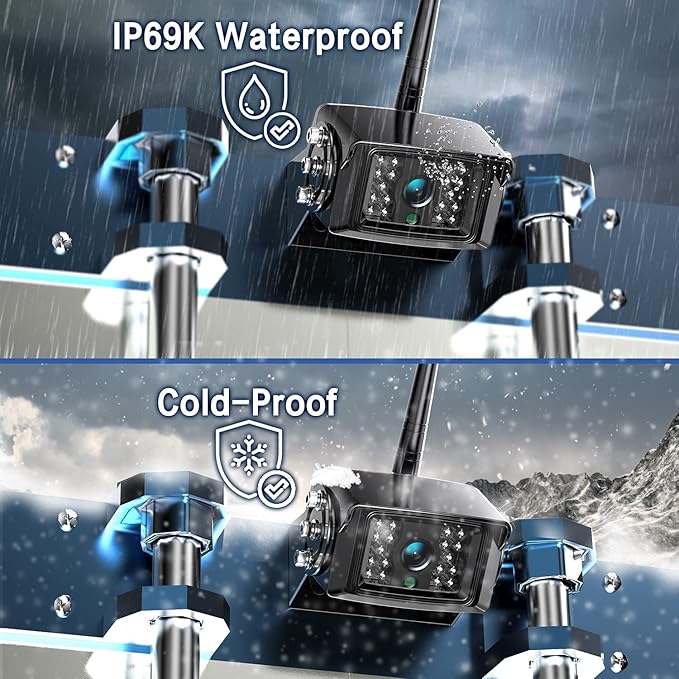

    Protection level IP69
