Automotive Electronics · Camera module
JD-CAM-AVMAVM Around View Camera
Automotive camera module for around-view monitoring, offered across the 2 MP sensor lineup with AHD and LVDS output at 30 or 60 fps.
PV4209, OV2718, OV X3C, IMX290, AR0233, AR0234, GC2053 and GC2093 options, matched per program.
30 or 60 fps depending on the sensor, on either interface.
Six-axis alignment on a fully automatic AA line in a Class 10,000 workshop.
Key parameters
Module specification
Sensor and interface combinations are selected per program with the sales and engineering team.
- Application area
- AVM (around view monitor)
- Sensors (2 MP)
- PV4209, OV2718, OV X3C, IMX290, AR0233, AR0234, GC2053, GC2093
- Interfaces
- AHD / LVDS
- Frame rate
- 30 / 60 fps depending on sensor
- Assembly
- Fully automatic active-alignment line, six-axis, 8 µm
- Testing
- Automated image, electrical, contamination, airtightness and aging tests on every unit
- Applications
- Around view monitor · Parking assistance · Low-speed maneuvering
Built and tested in-house
Two imaging platforms, more than 30 application platforms
The AVM camera is one of four application areas on JDONG’s two imaging platforms, which together span more than 30 application platforms. Sensor options include PV4209, OV2718, OV X3C, IMX290, AR0233, AR0234, GC2053 and GC2093 at 2 megapixels, with AHD or LVDS output at 30 or 60 fps.

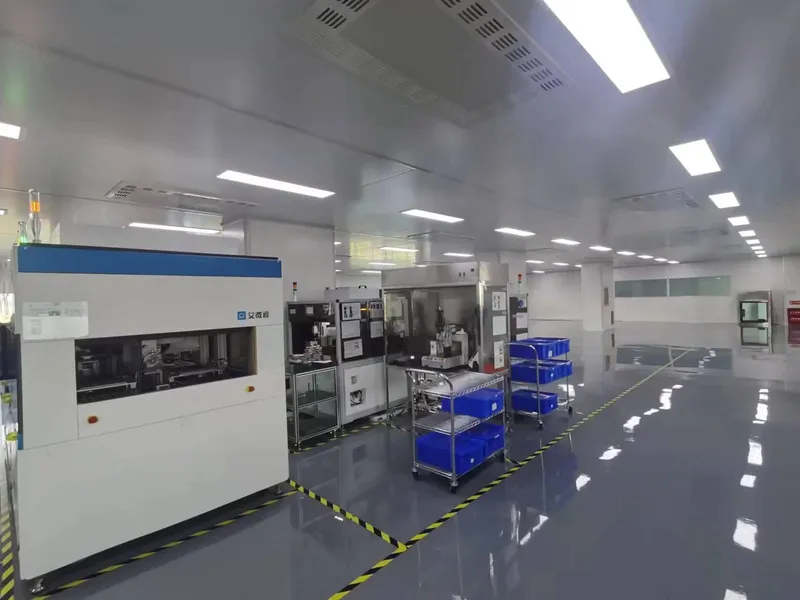

Modules are produced on a fully automatic active-alignment line with six-axis alignment and 8 µm precision in a Class 10,000 dust-free workshop, and every unit goes through automated image, electrical, contamination, airtightness and aging tests.
- The AVM camera is one of four application areas on JDONG's two imaging platforms, alongside streaming media, CMS and DMS/OMS.
- Modules are produced on two fully automatic active-alignment lines and a thread-focus line running above 140 pieces per hour.
- JDONG's vehicle camera portfolio ranks among the top three in China and exceeded 400,000 units in 2024.
