Automotive Electronics · T platform

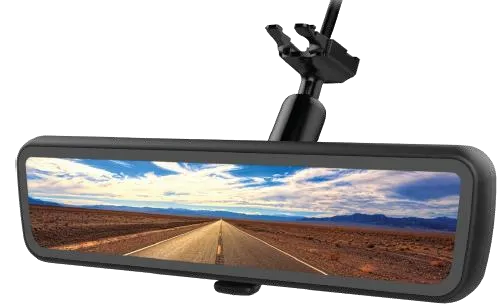

JD-T20Streaming Rearview Mirror T20
The top configuration of the T technology platform — an 8.9-inch 1920 × 720 display driven over LVDS, 2.5-megapixel capture at 60 fps, and front, rear and reverse triple-camera operation.
The widest, highest-resolution panel in the streaming mirror range, driven by a TP6806 over LVDS.
Paired with JDONG streaming media cameras and characterized on 16 imaging parameters with IMATEST.
Triple-camera operation on one display, for pickups, light trucks and passenger cars.
Key parameters
As released on the T platform
Figures are quoted from the published product specification. Program-specific variants are confirmed with the sales and engineering team.
- Platform
- T platform
- Display
- 8.9", 1920 × 720
- SoC / interface
- TP6806, LVDS
- Camera
- 2.5 MP, 60 fps
- Configuration
- Front / rear / reverse triple camera
- Camera module
- JDONG streaming media camera, 2 MP GC20B3 / GC2093 or 1 MP PV4109 / OX1F
- Applications
- Passenger cars · Pickups · Light trucks
Built and tested in-house
From SMT to optical characterization on one floor

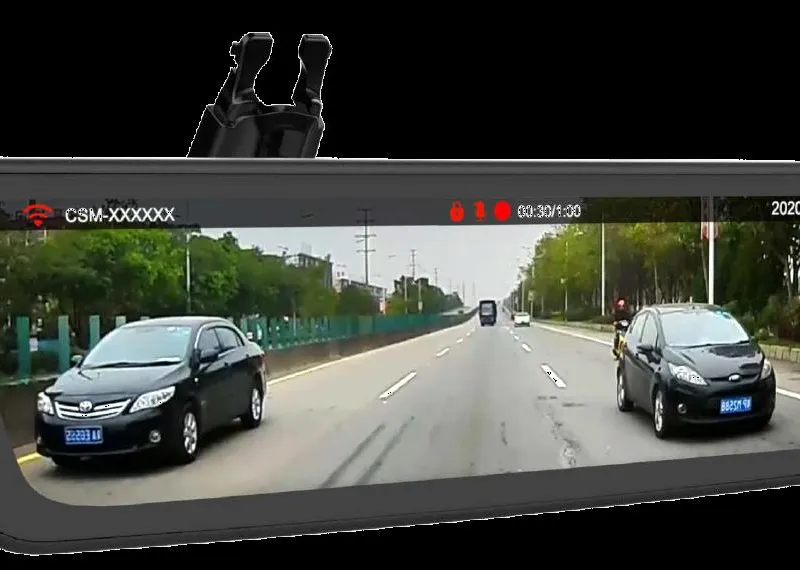

The T20 is the top configuration of JDONG’s T technology platform. It pairs an 8.9-inch 1920 × 720 display driven by a TP6806 over LVDS with 2.5-megapixel capture at 60 fps, and supports front, rear and reverse triple-camera operation for a wide, high-definition, low-latency rear view.
Streaming mirrors are offered on three technology platforms — T, N and G — so a program can move between LVDS and AHD architectures, dual and triple cameras, and display sizes while keeping the same supplier and validation base.
- Camera modules are aligned on fully automatic active-alignment lines — six-axis, 8 µm precision — in a Class 10,000 dust-free workshop.
- Image, electrical, contamination, airtightness and aging tests run automatically on every unit.
- Optical performance is evaluated with IMATEST across 16 vehicle imaging parameters, including resolution, color reproduction and brightness uniformity.
