Cooling Modules · Module supply
JD-COOL-FAWFAW Jiefang Cooling Module Assembly
Radiators and charge air coolers for the full FAW Jiefang medium and heavy truck range, supplied as complete cooling module assemblies across the 160–630 hp band.
Covers the entire FAW Jiefang medium and heavy truck line-up, including JH6, JK6, JH5 and Han V2.0.

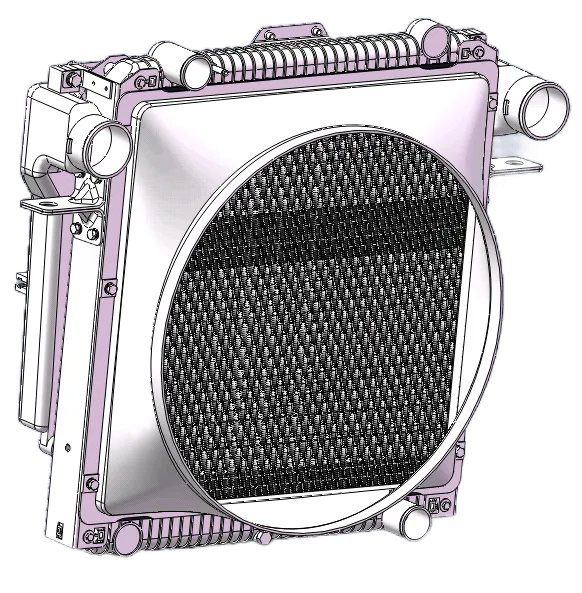

Radiator, charge air cooler and surrounding structure ship as one module ready for the line.
On a complete line from main-plate pre-coating to brazing, press fitting, welding and water test.
Key parameters
Module specification
Program-specific dimensions and performance are confirmed with the sales and engineering team.
- Product type
- Radiator + charge air cooler, module assembly
- Power range
- 160–630 hp, full range
- Supply mode
- Modular cooling module assembly
- Platforms
- FAW Jiefang JH6, JK6, JH5, Han V2.0
- Annual capacity
- 200,000 units
- Leak test
- Dry airtightness tester with US-made JODON core unit
- Applications
- FAW Jiefang JH6 · FAW Jiefang JK6 · FAW Jiefang JH5 · Han V2.0
Built and tested in-house
A complete brazed-aluminum process
JDONG supplies FAW Jiefang with cooling modules for its full medium and heavy truck line-up, including the JH6, JK6, JH5 and Han V2.0 platforms, covering the entire 160 to 630 hp range. Delivery is modular: the radiator, charge air cooler and surrounding structure ship as one assembly.
The production line runs main-plate pre-coating, fin punching and insertion, strip forming, core loading, brazing, press fitting, dry leak test, argon arc welding, water test and final assembly, with 200,000 units of annual capacity. The dry airtightness tester uses a JODON core unit from the United States.
- Main-plate pre-coating, fin punching and insertion, strip forming, core loading, brazing, press fitting, dry leak test, argon arc welding, water test and final assembly.

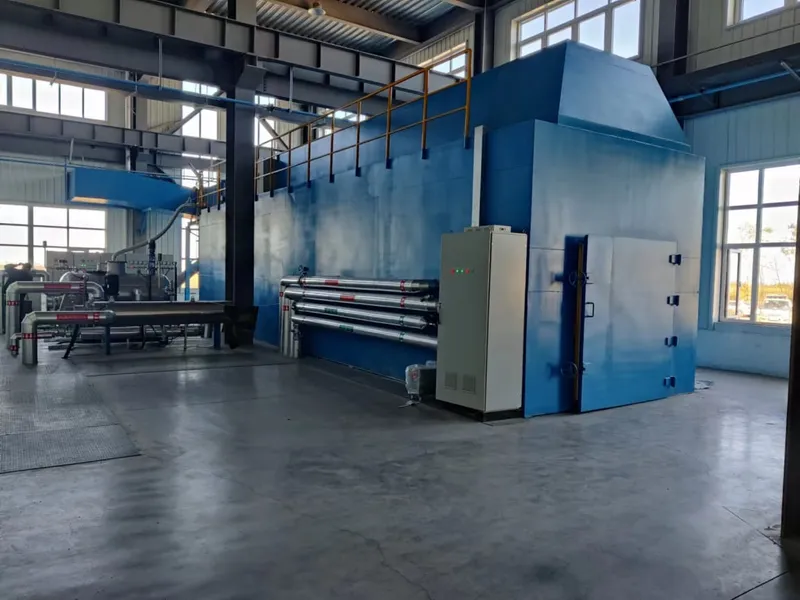

- Two gas-electric hybrid continuous automatic brazing furnaces and six automatic aluminum fin forming machines.
- Performance is developed with one-dimensional CFD simulation and verified in China's largest comprehensive radiator wind tunnel laboratory.
