Rearview Mirrors · Integrated

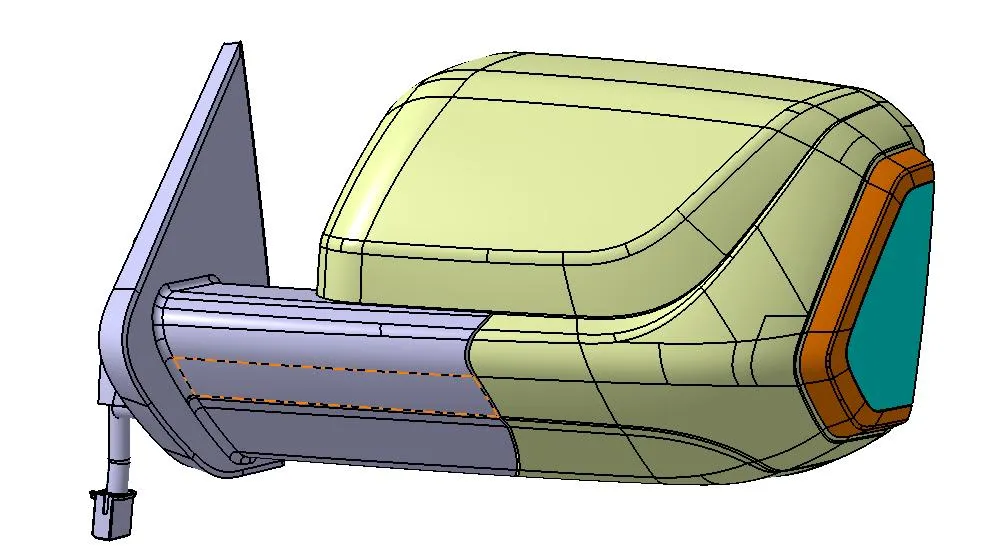

JD-MIR-APIAluminum-Plastic Integrated Rearview Mirror
Integrated aluminum-plastic mirror assembly for medium and heavy trucks, released on OEM platforms including FAW J7, Sinotruk TH7, Shacman X6000, Dongfeng H73, Foton H5 and JAC K7.
Developed from the design library behind more than 800 released mirror models, so new programs start from proven geometry.
Produced on 14 dedicated mirror assembly lines, with lens bonding in a Class 100,000 cleanroom.
Angle adjustment, turn signal, heating, power fold, BSD and camera functions verified on every unit.
Key parameters
As released for heavy-truck cabs
Figures are quoted from the published product specification. Program-specific variants are confirmed with the sales and engineering team.
- Mirror type
- Aluminum-plastic integrated
- Vehicle segment
- Medium and heavy trucks
- Options
- Electric heating, power fold, turn signal, blind-spot detection, camera
- Assembly
- 14 mirror assembly lines, two million sets a year
- Lens bonding
- Class 100,000 cleanroom
- End-of-line test
- 100% — angle, turn signal, heating, power fold, BSD, camera
- Certification
- IATF 16949 · ISO 14001 · ECE R46 E-Mark
- Applications
- FAW J7 · Sinotruk TH7 · Shacman X6000 · Dongfeng H73 · Foton H5 · JAC K7
Built and tested in-house
Molded, painted and bonded on one site
JDONG’s integrated aluminum-plastic mirror line is built on the platform design library behind more than 800 mirror models. Assemblies are produced on 14 dedicated mirror assembly lines with a combined capacity of two million units a year, with lens bonding performed in a Class 100,000 cleanroom and painting in a Class 100,000 clean booth on a mirror-dedicated fixed-spray line.
Every assembly passes a 100% end-of-line station verifying angle adjustment, turn signal, electric heating, power fold, BSD and camera functions before packing.
- Housings are molded on 53 Haitian injection-molding machines from 60 to 3,300 tons, each fitted with a swing-arm robot for automatic part removal.
- Painting runs in a Class 100,000 clean booth on a mirror-dedicated fixed-spray line.
- The CNAS-accredited laboratory runs every national and European standard mirror test, from xenon aging to vibration and salt spray.
